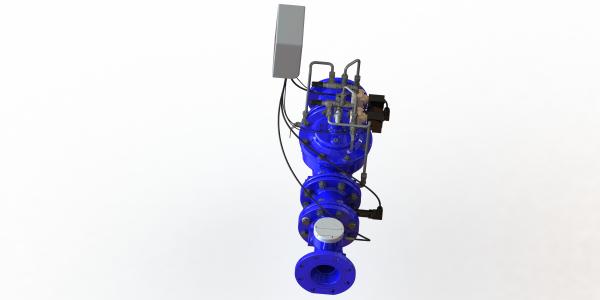

Pressure Management Valve Ductile Iron Dynamically Change Pressure For Non Revenue Water
Description:
P26H can vary the pressure based on the flow rate and demand and keeps the pressure stable in the end of distribution system. It can change the outlet pressure based on real time flow rate. You can define the curve between flow rate and outlet pressure. Complete capabilities allow either stand-alone operation or easy integration into SCADA systems with standard wired signals or Modbus communication.
Feature:
•Highly accurate and stable valve control
•Manually set the pressure regulation / flow rate of the system.
•Provides remote or local setpoint control for valves in a variety of fluid applications
•Communications via standard 4-20 mA transmission and relays or by Modbus Thruogh RS485
•The output signal of flow meter could be 4-20mA or pulse signal.
•PID Control
Benefit:
•Water Management system from DMA (District Metering Area) to DMZ (District Metering Zone)
•Reduce water leakages, electricity consuming and man power.
•Increase company profit by reducing Non-Revenue Water.
Technical Data:
| Size | DN50-DN800 |
| Working Temperature | - 10C- 80C |
| Flange | AISI B16.1 Or PN16 |
| Flow Media | Clean Water |
Series Description:
| Pressure Management Valve Type Series description |
| Type 1 | Type 2 | Type 3 |
| Change Valve Pressure Based on Time | Change Valve Pressure Based on Flow Rate | Change Valve Pressure Based on Flow Rate Dynamically. |
Materials And Dimensions DN50-DN350
Materials And Dimensions DN400-DN800
