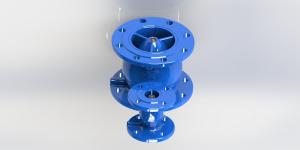

Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25

Name: Ductile Iron Non Slam Check Valve With Anti Water Hammer PN101625
Brand: AFC OEM
Price: 1 USD

Quality Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25 wholesale

Brand Name : AFC OEM

Model Number : NSCV

Certification : WRAS, NSF61/372

Place of Origin : China

MOQ : 1

Price : Price Negotiable

Payment Terms : L/C, T/T

Supply Ability : Based on order

Delivery Time : 45-60 days

Packaging Details : Plywood cases

Product Name : Ductile Iron Non Slam Check Valve

Model Code : NSCV

Material : Ductile iron GJS500-7

Standard : EN1074-3, EN12233

Fuction : Anti Water Hammer

Coating : EPOXY

Color : Blue

Head loss : Low

Contact Now

Ductile iron Anti Water Hamme Non Slam Check Valve Quick Close

Low Head Loss EPOXY Coated

Description:

NSCV- Non Slam Check Valve is used as a protection device against reverse flow when power failure in areas where noise pollution or water hammering is a critical issue. It can provide not only quiet performance but also low head loss. The faster closing speed can decrease the reverse speed of water to minimize the water hammer.

Features:

Extremely short stroke, quick close

Diffuser design- lowest head loss and streamline flow

Zero leakage of rubber disc seat

Spring hidden on back side of disc prevent clogging

Bronze bearing-long life service

Technical Data:

Size	DN50-DN600
Working Temperature	- 10C- 80C
Flange	AISI B16.1 Or PN16
Flow Media	Clean Water

Service Fields:

Mainly used for clean water, precleaned sewage water, Fire-fighting, Irrigation, Cooling and HVAC System.

Dimension:

DN50 - DN350

Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25

DN400 - DN600

Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25

Materials:

DN50-DN350

Ductile Iron Non Slam Check Valve With Anti Water Hammer PN10/16/25
