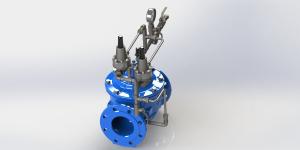

Nylon Reinforcement Hydraulically Operated Surge Anticipating Valve IP68

Nylon Reinforcement Hydraulically Operated Surge Anticipating Valve IP68

Description:

A2A5 is a surge anticipation valve and adjusted to eliminate hazardous pressure surges typical of water hammer conditions. A water hammer is caused by a sudden cutoff of a pump or rapid closure of main valve, causing a fast propagation of low-pressure front, followed by an extremely high-pressure back-wave. A series of pressure waves, each one composed of alternating low and high pressure is created within a few seconds. A2A5 is a piloted hydraulic valve activated by line pressure. The valve has two pilots, for high and low pressure. Under normal conditions the A2A5 is closed. It opens when the line pressure drops below a preset pressure, in anticipation to the following surge, and remains open until the fluctuations
subside.

Features:

• No slam operation
• Simple and reliable design
• Easy installation and maintenance
• Low Resistance and high flow capacity
• Protection for sewage as well as clean water pumping systems

Service Fields:

For water system, irrigation system.

Technical Data:

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

DN400-DN800

Nylon Reinforcement surge anticipation valve

IP68 surge anticipation valve

Surge Anticipating Valve IP68
