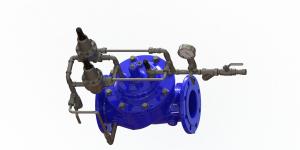

Ral5010 Ductile Iron Pressure Surge Relief Valve With SS304 Pilot

Brand Name : AFC

Model Number : A2A5

Certification : ISO 9001

Place of Origin : China

MOQ : 1

Price : Price negotiable

Payment Terms : L/C, T/T

Supply Ability : Based on order

Delivery Time : 15-60 days

Packaging Details : Plywood cases

Product Name : Ral5010 Ductile Iron Pressure Surge Relief Valve With SS304 Pilot

Model Code : A2A5 R2R5

Material : Ductile iron GJS500-7

Pilot Material : SS304

standard : EN1074-5

Color : Blue

Diaphragm : Nylon Reinforcement with EPDM

Rubber : EPDM

Contact Now

Ral5010 Ductile Iron Pressure Surge Relief Valve With SS304 Pilot

Ductile Iron Surge anticipating Valve Anti Water Hammer Stainless Steel Pilots Nylon Reinforcement Diaphragm

Description:

A2A5 is a hydraulically operated surge anticipation valve. The valve, sensing line pressure, will open in response to the pressure drop associated with abrupt pump stoppage. The pre-opened valve dissipates the returning high pressure wave, eliminating the surge.

The A2A5 smoothly closes drip tight as quickly as the relief feature allows, while preventing closing surge. The valve also relieves excessive system pressure.

Features:

• No slam operation
• Simple and reliable design
• Easy installation and maintenance
• Low Resistance and high flow capacity
• Protection for sewage as well as clean water pumping systems

Service Fields:

For water system, irrigation system.

Technical Data:

Size	DN50-DN800
Working Temperature	- 10C- 80C
Flange	AISI B16.1 Or PN16
Flow Media	Clean Water

Consult Factory for other applications
IP68 for water resistance
Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1

Materials And Dimension

DN50-DN350

Ral5010 Ductile Iron Pressure Surge Relief Valve With SS304 Pilot

DN400-DN800

Ral5010 Ductile Iron Pressure Surge Relief Valve With SS304 Pilot
