Soft Sealing Rising Stem Gate Valve Vertical Wall Mounted For Fire Fighting Service

Brand Name : AFC

Model Number : FRHF, FNCF, FRHG, FNCG

Certification : UL 262 and FM 1120

Place of Origin : China

MOQ : 1

Price : Price negotiable

Payment Terms : L/C, T/T

Supply Ability : Based on order

Delivery Time : 45-60 days

Packaging Details : Plywood cases

Product Name : Soft Sealing Rising Stem Gate Valve Vertical Wall Mounted For Fire Fighting Service

Model Code : FRHF, FNCF, FRHG, FNCG

Material : Dictile iron GJS500-7

Color : Red

UL Standard : UL 262

FM Standard : FM 1120

Handwheel : Ductile Iron

Flange : PN16 or AISI B16.1 or Table E

Contact Now

Soft Sealing Rising Stem Gate Valve Vertical Wall Mounted For Fire Fighting Service

Technical Data:

Size	DN50-DN300
Working Temperature	- 10C- 80C
Flange	AISI B16.1 OR PN16
Grooved Ends	AWWA C606
Flow Media	Water

Features:

1. AFC's fire fighting gate valve meet UL262 and FM1120.

2. NRS gate valve have the top flange for connecting with indicator post. Vertical type and wall mounted are available.

3. Stem: Forged platform to hold wedge provides stronger operation and less moving parts. No pin connection.

4. AWWA cap or BS cap are both available.

NRS

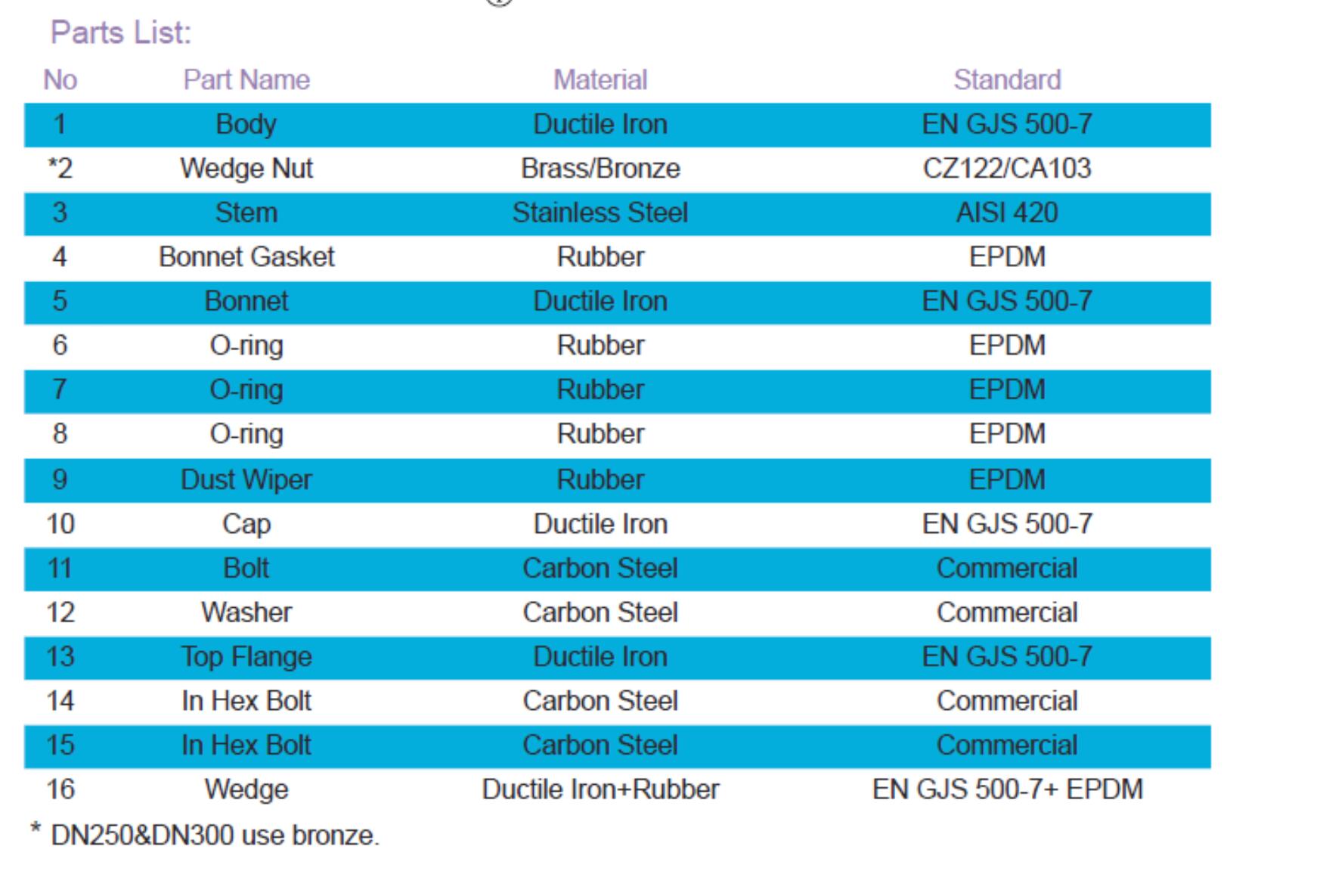

Material:

Soft Sealing Rising Stem Gate Valve Vertical Wall Mounted For Fire Fighting Service

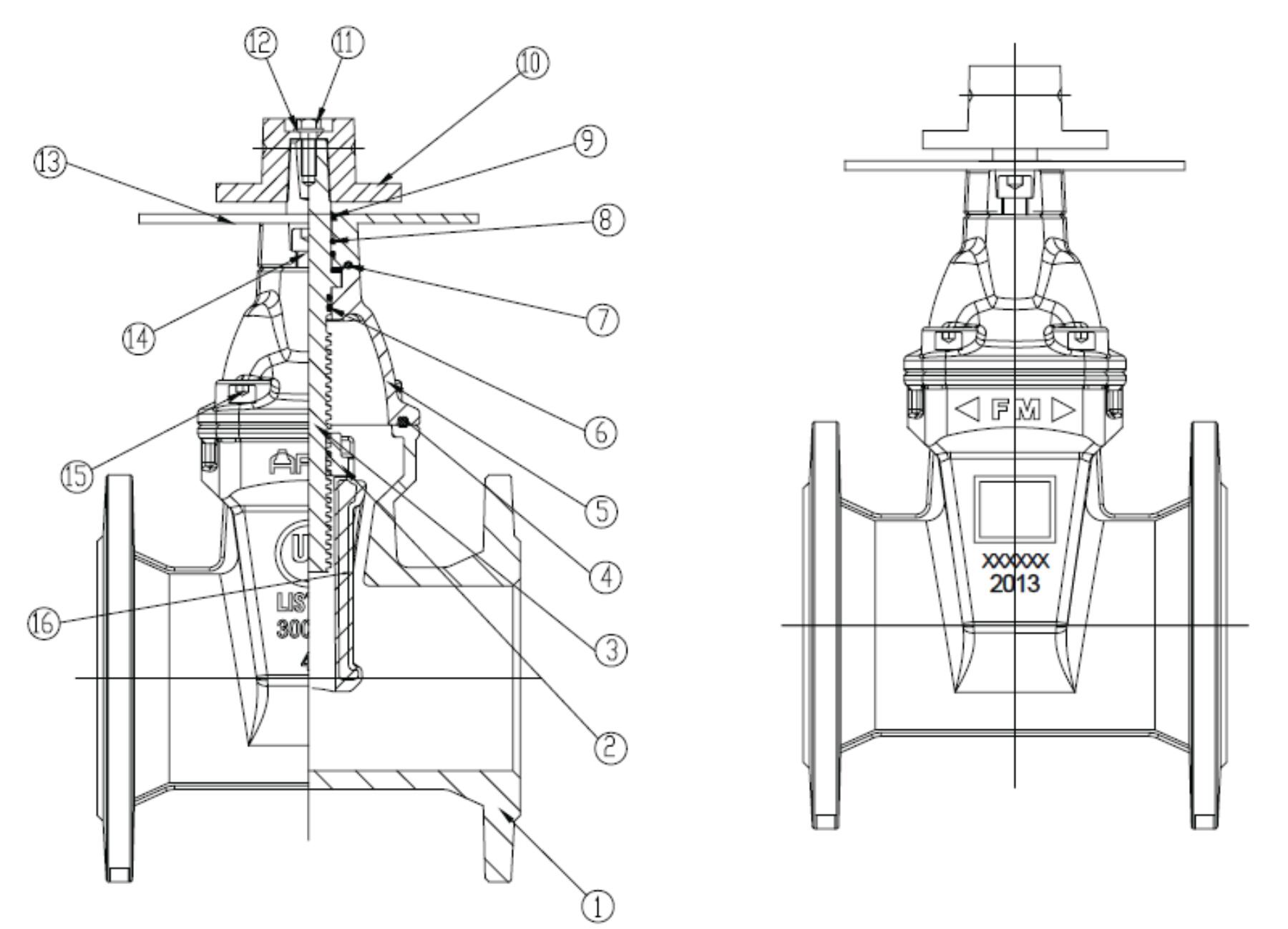

Dimension:

Soft Sealing Rising Stem Gate Valve Vertical Wall Mounted For Fire Fighting Service
