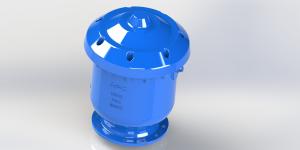

Stainless Steel 304 Float Air Vent Valve Epoxy Coated

Name: Stainless Steel 304 Float Air Vent Valve Epoxy Coated
Brand: AFC OEM
Price: 1 USD

Quality Stainless Steel 304 Float Air Vent Valve Epoxy Coated wholesale

Brand Name : AFC OEM

Model Number : ARVS

Certification : WRAS

Place of Origin : China

MOQ : 1

Price : Price negotiable

Payment Terms : L/C, T/T

Supply Ability : 60 days for two containers

Delivery Time : Based on order

Packaging Details : Plywood cases

Product Name : Small Air Vent Valve Stainless Steel Float , Epoxy Coating Air Flow Control Valves

Model Code : ARVS

Material : Ductile Iron GJS500-7

Float : Stainless Steel 304

Color : RAL 5010

Rubber : EPDM

O-ring : NBR

Connection : Thread

Contact Now

Small Air Vent Valve Stainless Steel Float Epoxy Coated With Stainless Steel 304 Internals

Feature:

• High grade ductile iron body, reduce the weight and much longer life than cast iron.
• Simple mechanism with lever and float.
• The float and internal parts are made of AISI 304 stainless steel and last for much longer service life cycles.
• Epoxy coating for both inside and outside.
• Male connection can easily be connected to isolated valves, no need further nipples..
• Can be BSPT or NPT thread.

Description:

ARVS-Single air release valve is commonly installed in the peak of the pipeline, and used for exhausting the compressed air in pipeline system, generally there will be about 2% of dissolved air in water and it will release as bubbles and thru the air release valve nozzle. It can prevent the existence of bubble gap for flow, this can help a better efficiency for transmission of flow.

Material

Stainless Steel 304 Float Air Vent Valve Epoxy Coated

Dimension

Stainless Steel 304 Float Air Vent Valve Epoxy Coated

Air Flow Characteristic

Stainless Steel 304 Float Air Vent Valve Epoxy Coated
