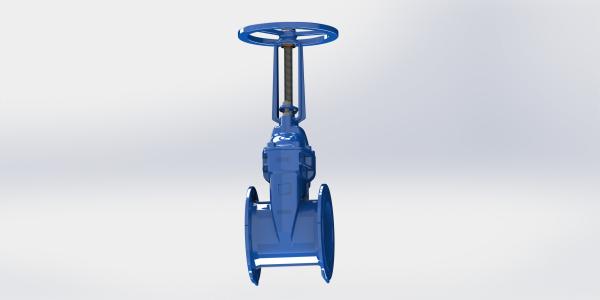

Fusion Bonded Epoxy Coated Outside Screw Yoke Gate Valve With Rubber Wedge

Name: Fusion Bonded Epoxy Coated Outside Screw Yoke Gate Valve With Rubber Wedge
Brand: AFC, OEM
Price: 1 USD

Quality Fusion Bonded Epoxy Coated Outside Screw Yoke Gate Valve With Rubber Wedge wholesale

Brand Name : AFC, OEM

Model Number : GBCX GBHX RBHX

Certification : WRAS, ISO9001

Place of Origin : China

MOQ : 1

Price : Price Negotiable

Payment Terms : L/C, T/T

Supply Ability : Based on order

Delivery Time : 60 days for 2 container

Packaging Details : Plywood cases

Product Name : Outside Screw Yoke Gate Valve

Model Code : GBCX GBHX RBHX

Material : GGG DI

Coating : Fusion Bonded Epoxy

Stem : SS420 SS413

HW : Carbon Steel , Ductile Iron

Color : Blue, Red

Pressure Rating : PN10,16

Contact Now

Outside Screw Yoke Gate Valve With Rubber Wedge / Fusion Bonded Epoxy Coated

Description:

AFC's OS and Y gate valve are can be used in Fire Fighting System. Fusion bonded epoxy coated to prevent corrosion. The minimum coating thickness is 250um. Customized coating thickness is allowalble.

Feature:

Easy operating with low torque.

Advanced design with less weight.

Service Field:

Water supply, sewage, fire fighting, irrigation, water circulation, heat, cooling system.

Feature:

1. Body, Yoke and Bonnet are made of GSJ500-7.

2. Wedge is fully coated by EPDM.

3. Rolled Stem thread

4. HW can be Carbon Steel or Ductile Iron.

5. Long lasting life.

6. Nylon Guiding can help to reduce the torque.

Quality System:

1. IQC - Incoming QC - We checked all incoming parts to ensure they are qualified.

2. IPQC - Input Process QC - During the production process, we checked the quality.

3. FQC - Final QC - All finished goods are 100% tested by factory.

4. OQC - Outgoing QC - Clean, packing and ensure the QTY is correct.

5. Tested standard : Seat :1.1 x PN, Body: 1.5 x PN

Technical Spec:

Size	DN50-DN300
Working Temperature	- 10C- 80C
Flange	PN10/16
Flow Media	Water, Sewage Water
Face to Face	EN558-1

Dimension:

Fusion Bonded Epoxy Coated Outside Screw Yoke Gate Valve With Rubber Wedge

Material:

Fusion Bonded Epoxy Coated Outside Screw Yoke Gate Valve With Rubber Wedge
