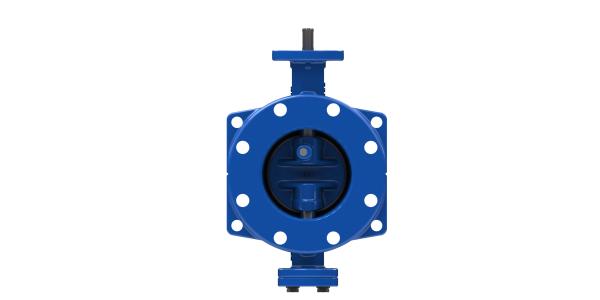

DN350mm Ductile Iron Double Eccentric Butterfly Valve With Arch Disc

Name: DN350mm Ductile Iron Double Eccentric Butterfly Valve With Arch Disc
Brand: AFC OEM
Price: 1 USD

Quality DN350mm Ductile Iron Double Eccentric Butterfly Valve With Arch Disc wholesale

Brand Name : AFC OEM

Model Number : FBGD, FBBD, FBED,FBPD

Certification : NSF61

Place of Origin : China

MOQ : 1

Price : Price negotiable USD RMB

Payment Terms : L/C, T/T

Supply Ability : 2 containers in 60 days

Delivery Time : Based on order

Packaging Details : Plywood cases and pallets

Product Name : Double Eccentric Butterfly Valve With Stronger Ribs and Arch Shape Disc

Model Code : FBGD FBBD

Color : Blue RAL 5010 NSF61

Material : Ductile Iron GSJ500-7

Disc Seat : 316L

Body Seat : EPDM

Pressure Rating : 150 PSI

Standard : AWWA C504

Contact Now

Double Eccentric Butterfly Valve With Stronger Ribs and Arch Shape Disc

Features:

Arch shape design, stronger ribs on back side, size DN350-1200MM

Special Bearing:

Bearing-CS base coated with bronze + PTFE interior and tin exterior

Tin have a better electrolyte character, prevent rusting

Stronger than bronze bearing and last longer

Online repairing by EPOXY:

The special technology can help user to repair the Double Eccentric Flange Butterfly Valve without taking the valve out of the pipeline. The user only needs to repair it from the exterior of the butterfly valve without going into the pipeline. Please consult the factory and we will show you how to repair the BV when the rubber seal is damaged.

Rubber Seat:

No need bolting and permanent positioned , decrease nut loose & hole rusting

Epoxy injected on the backside of groove

Dovetail Design

Operation Torque:

Bare Head Torque (Nm)
Inch	Nm
4	85
6	128
8	210
10	250
12	372
14	760
16	1160
18	1280
20	1680
24	2500
28	2592
32	4428
36	5300
40	7245
48	13320

Materials:
DN350mm Ductile Iron Double Eccentric Butterfly Valve With Arch Disc

DN350mm Ductile Iron Double Eccentric Butterfly Valve With Arch Disc

Dimension:

DN350mm Ductile Iron Double Eccentric Butterfly Valve With Arch Disc
