PN16 SS304 Pilot FBE Coated Pressure Sustaining Valve

Brand Name : AFC

Model Number : A500

Certification : EN1074-5

Place of Origin : China

MOQ : 1

Price : Price Negotiable

Payment Terms : L/C, T/T

Supply Ability : Based on order

Delivery Time : 15-60 days

Packaging Details : Plywood cases

Product Name : Pressure Sustaining Valve

Model Code : A500

Material : Ductile iron - GJS500-7

Pilot Material : SS304

Standard : EN1074-5

Coating : EPOXY

Diaphragm : Nylon Reinforcement with EPDM

Rubber : EPDM

Contact Now

Nylon Reinforcement Diaphragm EPOXY Coated Water Pressure Sustaining Relief Valve Stainless Steel 304 Pilot Operated

Description:

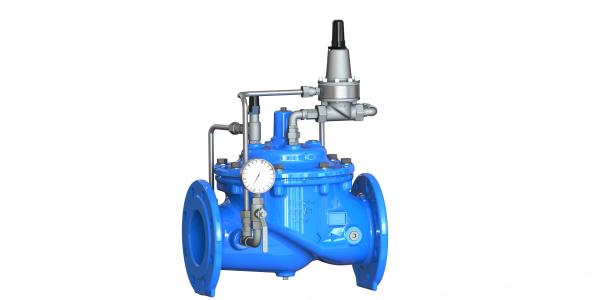

A500 is a hydraulically operated, diaphragm actuated control valve that can fulfill either of two separate functions. When installed in-line, it sustains minimum pre-set, upstream (back) pressure regardless of fluctuating flow or varying downstream pressure. When installed as a circulation valve, it relieves excessive line pressure when above maximum pre-set.

Features:

• Accurate Pressure Control
• Optional Check Feature
• Fast Opening to Maintain Line Pressure
• Completely Automatic Operation

Size	DN50-DN800
Working Temperature	- 10C- 80C
Flange	AISI B16.1 Or PN16
Flow Media	Clean Water

Materials And Dimension

DN50-DN350

PN16 SS304 Pilot FBE Coated Pressure Sustaining Valve

DN400-DN800

PN16 SS304 Pilot FBE Coated Pressure Sustaining Valve
