Brand Name : AFC
Model Number : FRHF, FNCF, FRHG, FNCG
Place of Origin : China
Pressure : Class125/150
Temperature : -10℃-80℃
Design : UL/FM
Face to Face : ANSI B16.10
Connection : Flanged/Grooved
Standard : ANSI/UL/FM
Size : 2”-12”
Seal : EPDM
UL FM Gate Valve is a light operation torque valve designed to meet UL and FM standards. It is made of ductile iron and coated with fusion bonded epoxy coating for maximum durability. It has a size range from 2”-12” and end flange compliant with ANSI B16.1 standard. The double eccentric structure design allows the gate to open and close with light operation torque, making it ideal for firefighting applications. It can be used in temperature range of -10℃ to 80℃ and is UL FM approved for water gate valve.
Parameter | Value |
---|---|
Design | UL/FM |
Certificate | UL/FM |
Connection | Flanged/Grooved |
Temperature | -10℃-80℃ |
Standard | ANSI/UL/FM |
Face to Face | ANSI B16.10 |
Operation | Handwheel/Cap |
Seal | EPDM |
Painting | Fusion Bonded Epoxy Coating |
End Flange | ANSI B16.1 |
Type | Red Epoxy Coated, Flange Or Groove Type Non Rising Stem Resilient Seated Valve, For fire fighting system |
We provide a comprehensive range of technical support and service for UL FM Gate Valves. Our experts can provide guidance on selection, installation, operation and maintenance of these valves.
We offer on-site troubleshooting and repair services to quickly address any technical issues. Our technicians are available 24/7 to respond to any emergency problems.
We also provide a range of training courses to ensure that our customers are fully aware of the capabilities and limitations of UL FM Gate Valves. Our training classes are designed to provide a comprehensive overview of the product and its use in various applications.
For any further enquiries or requests, please contact us at [Insert Customer Service Contact Info Here].
![]() |

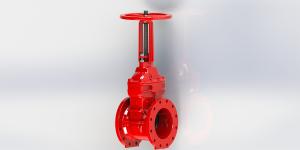

UL FM Ductile Iron Handwheel / Cap Gate Valve ANSI B16.10 Face To Face Images |
