EY3000 Epoxy Coated Rising Stem UL FM Gate Valve For Fire Protection Service

Name: EY3000 Epoxy Coated Rising Stem UL FM Gate Valve For Fire Protection Service
Brand: AFC,OEM
Price: 1 USD

Quality EY3000 Epoxy Coated Rising Stem UL FM Gate Valve For Fire Protection Service wholesale

Brand Name : AFC,OEM

Model Number : FRHF FRHG FRHX

Certification : FM1120 UL 262

Place of Origin : China

MOQ : 1

Price : Price negotiable

Payment Terms : L/C, T/T

Supply Ability : 60 days for 2 containers

Delivery Time : Based on order

Packaging Details : Plywood cases

Product Name : Red Epoxy Coated Rising Stem Type UL FM Gate Valve

Model Code : FRHF FRHG FRHX

Material : Ductile Iron

Color : Red EY3000

Connection : Flange Groove

Stem : SS420

Wedge : EPDM Vulcanized

Flange : AISI B16.4 PN16

Contact Now

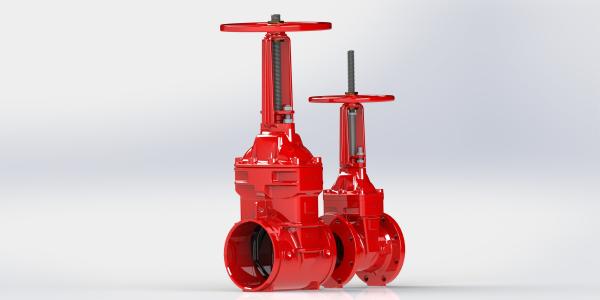

Red Epoxy Coated Rising Stem Type UL FM Gate Valve For Fire Protection Service

Feature:

The valve body is the straightway type and when the gate is fully open, a waterway diameter equal the inside diameter of a mating pipe

The body and bonnet of a valve shall be made of materials having strength, rigidity, and resistance to corrosion.

An outside-screw-and-yoke valve is provided with a handwheel to make operation earlier.

Quality Control:

IQC	Check call incoming parts
IPQC	Check the production process is qualified
FQC	All valves are pressure tested
OQC	Check the valve outlook and packing

Material

EY3000 Epoxy Coated Rising Stem UL FM Gate Valve For Fire Protection Service

No.	Part Names	Material	Standard
1	Body	Ductile Iron	EN GJS500-7
2	Stem	Stainless Steel	AISI420
3	Bonnet Gasket	Rubber	EPDM
4	Bonnet	Ductile Iron	EN GJS500-7
5	O-ring	Rubber	EPDM
6	O-ring	Rubber	EPDM
7	Yoke	Ductile Iron	EN GJS500-7
8	Gland	Ductile Iron	EN GJS500-7
9	Thrust Nut	Brass/Bronze	CZ122/CA103
10	Handwheel	Carbon Steel	Commercial
11	Thread Bar	Carbon Steel	Commercial
12	Nut	Carbon Steel	Commercial
13	Washer	Carbon Steel	Commercial
14	In Hex Bolt	Carbon Steel	Commercial
15	Wedge	Ductile Iron+Rubber	EN GJS500-7+EPDM

Dimension

EY3000 Epoxy Coated Rising Stem UL FM Gate Valve For Fire Protection Service
